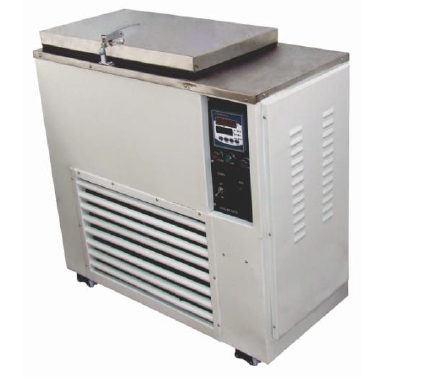

Constant Temperature Refrigeration-Liquid Bath

Double walled inner is Stainless Steel 304 qlty.
Outer case is made of mild steel finished in epoxy powder coating paint.
Insulation by puff of 50mm.
The door has silicone rubber gasket with magnet inside.
A sealed compressor, fan cooled condenser & all its accessories.
Stirring blade with 1/20 H.P. High Speed Motor with Speed regulator.
Temp.
Microprocessed Digital Temp. Controller cum Indicator form +5°C to 90°C ± 0.2°C.
With Rotary switch, ON –OFF Switch, Voltmeter, 2 Nos. indicators, speed Regulator
With 3 step voltage stabilizer.
This Bath can be used as Deep freezer having temp. range up to minus 20°C (Do not use water below 5°C to minus 20°C.)
Work on 220/230V AC
MODEL SIZE (MM)
L W H LTRS RATING
RBS-1 500 x 250 x 250 32.5 3.5 KW
RBS-2 500 x 250 x 300 39 3.5 KW

MODEL	SIZE (MM) L W H	LTRS	RATING
RBS-1	500 x 250 x 250	32.5	3.5 KW
RBS-2	500 x 250 x 300	39	3.5 KW
